AutoCad Keyboard Shortcuts. Keys. ALT+F8. VBA Run Executes last command. CTRL+K. Hyperlink CTRL+[. Cancels current command. CTRL+\. Command Reference. January PDF Underlay Ribbon Contextual tab. is better suited for the 3D display features of AutoCAD and later releases. HOMEMICRO. AutoCAD Command Shortcuts. AutoCAD Command Shortcuts. IN THIS GUIDE. This guide lists AutoCAD shortcuts in groups according to.
|Language:||English, Indonesian, Dutch|
|ePub File Size:||23.73 MB|
|PDF File Size:||19.86 MB|
|Distribution:||Free* [*Register to download]|
AutoCAd Command List - Free download as Word Doc .doc /.docx), PDF File .pdf), Text File .txt) or read online for free. AutoCAD 3D Tutorial. - 14 -. Thickness Command. 1. Begin a new drawing using a 3D Modeling workspace. 2. Choose View, Viewports, 2 Viewports. 3. a block definition. I Controls attribute visibility. Page 1 of AutoCAD Commands. 10/29/ garfstontanguicon.tk html.
Cancels current command. This guide lists AutoCAD shortcuts in groups according to Command Reference.
Autodesk, Autodesk Line window. Flag for LIST Displays database information for selected objects. Given all the ways in which you can execute a command in AutoCAD and AutoCAD is one of the most used engineering programs across the globe. Academic Resource Center Page 2. New D Workspace. A new option on the Sheet List shortcut menu allows you The last used AutoCAD command can be re-entered by one of the following. AutoCAD Electrical. Number of Commands Utilized.
Number of Times Commands Were Accessed All rights reserved.
AutoCAd 2007 Command List
Engineers , Architects , Construction professionals rely on AutoCAD , The AutoCAD command set is localized as a part of the software localization. You can also export the document to an electronic format such as PDF.
How do I import or bring in a pdf into my cad drawing ? AutoCAD will prompt you with the save dialogue box before closing all unsaved drawings and it will take you to start screen after closing all of the drawings. Using this system variable you can make a selection of overlapping objects very easily. This command should be used for removing errors from your drawing.
More about drawing repair tools can be found in this related article. How to repair corrupt AutoCAD drawings and fix its errors. This command is a great time saver if you want to copy properties of one object on other without changing its geometry or contents. Using this command you can close all open drawing windows except the current drawing window. Using this command you can shrink or expand the text entities in a drawing to fit in the required area. Using wipeout command you can clean background in a crowded drawing to make overlaying objects clear against the background.
In the image shown below Wipeout command has been used to clean the area around the second hook. Using this command you can convert your AutoCAD drawing from one unit to another and you can also scale the existing drawing to new scales automatically, you can know more about this command in the related article.
How to change units of drawing in AutoCAD.

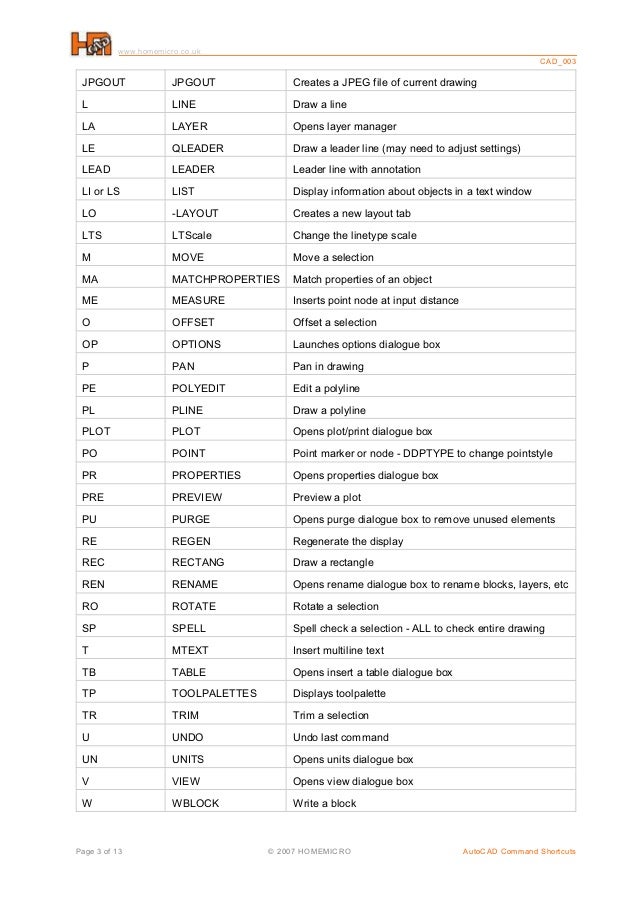

Most used AutoCAD Shortcuts – AutoCAD Shortcuts PDF
Using this command you can automatically create a masking behind the text to make it clearly visible against the crowded background. In the image below Textmask has not been applied for the first case and in the second case, it has been applied.
If you want to merge layers of multiple objects then this command is for you. Select any object of target layer on which you want to transfer the selected objects and press enter again.
All the objects of the selected layer will be transferred to the end layer and also the selected layer will be removed. Using this command you can open the drafting settings window which can be used to change settings related to status bar options like object snap, polar tracking, snap and grid settings. Using this command you can check all the objects which are on a particular layer. When you use LAYWALK command a list with all layers appears on the screen and you can click on any of the layer s from the list and objects from that layer s will only become visible in the drawing area.
This tool was added in the AutoCAD version and it allows you to create center mark easily on a circle or arc. As the name suggests you can add a centerline easily between parallel or intersecting lines using this tool. If for some reasons you are looking to use Tablet as pointing and navigation device in AutoCAD then you can use this command to turn the Tablet input on and off.
You can learn more about this command on this AKN page. These commands will help you in making your overall drawing workflow faster and efficient by eliminating the need for using many repetitive tasks. It is always a great practice to use as fewer steps as possible to keep the drawing workflow easy and also to avoid unnecessary data in your drawing, and the commands of this section will help you in achieving just that.
This command will open a text window which has a history of recently used commands.
This tool can be used to modify the attribute information of blocks containing attributes. This command will redirect you to BIMobject. It is one of the great places to get blocks for your projects. Using this command you can select objects which are connected to the selected object in the drawing area. This selection series continues as long as the command finds connected objects.
Using this command you can bring TEXT, Dimensions and Leader lines on the front of all underlying objects like hatches. This command is especially helpful if you want to bring multiple annotations to the front of all drawings objects without changing their draw order selectively.
Using this command you can hide all objects from the drawing area except the selected objects. By hiding unnecessary objects from drawing you can get a clean work area. Using this command you can group multiple objects as a single unit. This command is great for making groupings of the similar type of objects like a group of similar blocks.
This command can be used to bring Design Center palette in the drawing area. To know more about the design center go to the related article. Using this command you can import drawings of many different formats in AutoCAD, the list of all supported formats is shown in the image below.
Fields are dynamic text information which can add a lot of intelligence to your drawing by keeping data interlinked and updated. Fields are extensively used in the sheet set and layout drawings and they can be used to automate a lot of information in AutoCAD drawings. If you want to export a certain part of your drawing or any of its blocks to an external file then you can use write block tool or its command equivalent WBLOCK.
Using this command you can convert a surface into a 3D solid by adding thickness to it. Using this command you can convert 3D mesh and watertight objects made with surfaces to 3D solid and you can also control whether converted solid is smooth or faceted.
Using this command you can make a 3D wall-like shape as shown in the image here, you can also define height and thickness of this poly solid using command line options. This system variable controls the behaviour or 2D curves when 3D tools like Extrude, Presspull and Sweep is used. You can change the value of this system variable so that AutoCAD either retains or deletes curves after converting them to 3D. More about this system variable can be found in this AKN article.
Using this command you can find the volume of a 3D solid as well as lots of other information like its moment of inertia, radius of gyration, centroid, and products of inertia. You can extract edges of a 3D solid as 2D geometries using this tool.
In the image shown here the XEDGES tool has been used to extract the edges of the 3D solid and then the solid geometry has been moved to reveal the edges only.
This command was introduced in AutoCAD Using this command you can create a section plane in the drawing that can be used to see the 3D drawings by sectioning them along different planes. This command is great for converting a 3D drawing into 2D and using this command you can also create multiple views of a single 3D drawing like the front, top and isometric on a single plane.
To know more about this command follow the related article. This command can be used to detect intersecting 3D solids.
The command is especially useful in situations where you want to detect clashes between different solids like pipes and walls. Using this command you can project a 2D curve on a 3D surface, solid or region as shown in the animated image below. Using this command you can convert a 3D solid into a hollow solid with a wall thickness.
Alternatively, you can also select the shell tool from Solid editing panel of the Solid tab. Using this command you can fill the open areas of a surface like the top of a cylinder as shown in the animated image below. As the name suggests this command can be used to make a helix in AutoCAD drawing. Using this tool you can move faces like a groove of a 3D solid from one point to other as shown in the animated image below. This command is similar to the trim command of 2D drawings but in this case, it will trim surfaces instead of 2D geometries.
Using this command you can align a 3D solid object with respect to another 3D solid, this video explains the use of this command in detail. Using this command you can offset any surface inside, outside or on both sides of the surface as shown in the animated image below. Using this tool you can record the history of solids on which boolean operations are performed and you can modify these solids later.
In the image below Subtract operation is performed on two solids and then the amount of removed part is changed by selecting the Cone by pressing CTRL key then changing its base radius. Using this command you can imprint 2D drawings on planar faces of a 3D solid or a surface to create additional faces for 3D tools like Presspull.
Let us know in the comments below. When you subscribe to SourceCAD using the form on the page a download link will be sent to your email automatically. It is most important and very useful commands indeed, as we are learner we need a teacher like you. Than You Very much Sir.
May I ask a question what is the command key of Spline because there has no answer you given so I sak on you? Thank you. Thank u sir its very useful to us because of this source cad recently I am selected in one interview. I grateful to God for this your YouTube video lessons, it changed my life.
God will ever bless you with all blessings of heaven. Hi Trent, it should work! Thanks Jaiprakash Pandey, worth uploading. I have an idea that it starts from ISO command but am not fully aware of that.
Sir i am 12 th pass student can i do this course what will be doing this feild job in 12th student. This article contains all important list of commands. Very important information. Thanks for sharing. Hi, how are you? Thank you,. As a town planner, i feel like i should leave acad for another software…its too complicated to draw a simple layout plan…any better software? Dear sir i am a student of science an i have to learn autocad so breaf me a basic practicle.
You can learn AutoCAD from these free tutorial videos https: Thank you so much sir very helpful, i have question how to command scale drawing in autocad, i scaled drawing at software but in hardcopy drawing does not much, How to fix it? To you Jaiprakash, thank you so much for your passion and contineus support for both the creative and technical education. More power to you and more thumbs up to your Udemy courses!
Here is an article that might help you https: Very much useful info for me…. Most definitely 20 of the best there! A great selection and very useful for the novice and beginner. Hello Jai,i have to design piping for fire protection system in building 2D ,have you any course that can help me? Thanks Syed, here is an article that might help you https: How can one bring back xref command if it does not show?
Here, this article will help https: Your contribution to help people to get more familiar in ACAD is priceless. Thanks a lot!!! Sir I request one solution for solve my printing issue my plotter is HP designer when I make print autocad automatically closing.
Save my name, email, and website in this browser for the next time I comment. L It can be used for making simple lines in the drawing.
PL This command can be used to make a Polyline in your drawing. POL This command can be used to make a polygon with minimum of 3 sides and a maximum of sides.
TR This command is used for trimming a geometry. SC This command is used to change the scale of an object.
B This command is used for creating a block, the properties of the block can be defined using the block definition window. X This command can be used to explode objects like Polyline to simple lines, an array or a block to a simple geometry etc. F This command can be used to add rounded corners to the sharp edges of the geometry, these round corners are also called fillets. CHA This command can be used to add slant edges to the sharp corners, these slant edges are also called chamfers.
LA This command can be used to open layer properties manage palette which is a tool for creating and managing layers in a drawing. F7 This status bar tool will toggle the visibility of background grid which is often visible in your drawing area. F9 Toggle Snap mode, when snap mode is active AutoCAD cursor will jump to specific points in the drawing area which is defined in snap mode.
DYNMODE By default the value of this system variable is set to -3 which keeps it off you change this system variable to 3 to make dynamic input active. F3 One the most important status bar toggles. F6 Dynamic UCS can be activated or deactivated using this function key. General Commands These are some of the commands which can be frequently used in your drawing workflow to improve your overall efficiency. To know more about this subcommand refer the related article. TIME Using this command you can find a lot of information about your drawing like the date when the drawing was created and total editing time consumed on the drawing.
LIST Using this command you can find lots of properties of an object like the layer they are on, area, length or radius, perimeter or circumference and a lot more. DIM This command was introduced in AutoCAD version and it can be used to make most of the dimensions like Linear, aligned, radius, diameter and baseline. BASE Using this command you can change the base point of a drawing without changing its origin. UNITS Using this command you can set the drawing units and other settings like the precision of linear and angular dimensions and default rotation angle.
ML Using this command you can make a multiline geometry which contains multiple parallel lines. Performance Related Commands There are many best practices that you follow to keep your AutoCAD software and PC in great working condition and there are also many inbuilt tools and commands in AutoCAD that help you in keeping the performance of your software properly optimized.
PURGE This command can be used to remove unused named objects like layers, blocks and dimension styles from the drawing. FILLMODE Using this system variable you can turn off or on the visibility of filled area in hatches or wide polylines by changing its value to 0 or 1 respectively.
How to repair corrupt AutoCAD drawings and fix its errors MA This command is a great time saver if you want to copy properties of one object on other without changing its geometry or contents. DS Using this command you can open the drafting settings window which can be used to change settings related to status bar options like object snap, polar tracking, snap and grid settings. Accessibility Commands These commands will help you in making your overall drawing workflow faster and efficient by eliminating the need for using many repetitive tasks.
FS Using this command you can select objects which are connected to the selected object in the drawing area. FIELD Fields are dynamic text information which can add a lot of intelligence to your drawing by keeping data interlinked and updated. VOLUME Using this command you can find the volume of a 3D solid as well as lots of other information like its moment of inertia, radius of gyration, centroid, and products of inertia.
